PCW Board 3272 for Fabrication

Temperature Grade

1800°C (3272°F)

Chemistry

Alumina, Silica

CCEWOOL® Polycrystalline Fiber Board 3272 for Fabrication. Low shrinkage, high thermal stability, and custom machining for 1800°C furnace lining systems.

Get a Quote

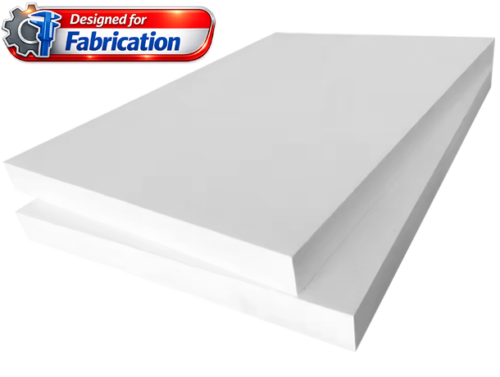

CCEWOOL® PCW Board 3272 for Fabrication

CCEWOOL® PCW Board 3272 for Fabrication is a high-performance polycrystalline wool (PCW) insulation board developed for extreme high-temperature furnace lining systems. The product is manufactured from high-purity polycrystalline fibers using a wet vacuum forming process followed by high-temperature sintering, resulting in a highly stable fiber structure with excellent performance in severe thermal environments.

CCEWOOL® PCW Board 3272 for Fabrication belongs to the high-temperature polycrystalline fiber board category. Compared with conventional industrial-grade fiber boards, it offers higher material purity and a more stable crystalline structure. As a result, the board exhibits extremely low linear shrinkage and superior long-term stability when exposed to elevated temperatures. Even under operating conditions up to 1800°C (3272°F), the board maintains excellent structural integrity while providing strong resistance to thermal shock and high-velocity gas flow erosion.

CCEWOOL® PCW Board 3272 also provides excellent Fabrication compatibility. The homogeneous structure and high mechanical strength allow the material to be easily cut, drilled, or machined into engineered components such as furnace door panels, flame baffles, and high-temperature structural insulation parts. CCEWOOL® additionally offers Fabrication customization services, supplying boards in custom thicknesses, dimensions, and complex shapes according to furnace lining designs or engineering drawings.

Benefits

  • Ultra-High Temperature Performance up to 1800°C

    Designed for extreme furnace environments, maintaining structural integrity under ultra-high temperatures.

  • Excellent Resistance to Thermal Shock & Gas Flow Erosion

    Performs reliably under rapid temperature changes and high-velocity gas environments.

  • Extremely Low Shrinkage & Long-Term Stability

    High-purity crystalline structure ensures minimal linear shrinkage and reliable long-term performance.

  • Fabrication-Ready for High-Temperature Structural Components

    Supports precise machining into complex parts such as furnace doors, flame baffles, and structural insulation components.

Features of PCW Board 3272 for Fabrication

  • Engineering-grade polycrystalline fiber insulation board

    Manufactured using high-purity polycrystalline fibers with controlled processes, ensuring consistent quality and reliability in extreme high-temperature applications.

  • Maximum operating temperature up to 1800°C (3272°F)

    Designed for ultra-high-temperature environments, maintaining structural integrity and insulation performance under severe thermal conditions.

  • Extremely low linear shrinkage at high temperatures

    Advanced crystalline structure minimizes shrinkage, ensuring long-term dimensional stability and precise fit in furnace linings.

  • Excellent thermal shock resistance

    Resists cracking and structural damage under rapid heating and cooling cycles, extending service life in cyclic operations.

  • High mechanical strength and structural stability

    Provides strong load-bearing capacity and maintains shape under combined thermal and mechanical stress.

  • Capable of direct flame exposure

    Suitable for hot-face applications, withstanding direct flame contact without compromising structural integrity.

  • Minimal shot content and ultra-low dust generation

    High-purity fiberization reduces non-fibrous particles and dust, improving cleanliness and processing performance.

  • Excellent Fabrication and machining capability

    Supports precise cutting, drilling, and shaping into complex engineered components for customized high-temperature systems.

Application of PCW Board 3272 for Fabrication

Highly efficient energy-saving solutions

High-temperature laboratory furnaces;
Vacuum furnaces and controlled atmosphere furnaces;
High-temperature sintering furnaces;
Ceramic kilns;
Glass industry furnaces;
Hot-face linings for high-temperature equipment;
Structural insulation components for extreme temperature environments.

Specifications & Sizes

CCEWOOL® PCW Board 3272 for Fabrication
Classification temp. °C (°F) 1500(2732) 1600(2912) 1700(3092) 1800(3272) 1900(3452)
Continuous duty temperature, °C(°F) 1350(2462) 1400(2732) 1500(2732) 1650(3000) 1800(3272)
Density approx. kg/m3 350/400 350/400 350 350/400 650/700
Linear shrinkage, %(24 hours at max. continuous duty temperature)
1400°C ＜0.5
1500°C ＜0.1
1600°C ＜0.5
1700°C ＜0.5
1750°C ＜0.2
Chemical Composition (%)
Al2O3 62 64 75 75 87
SiO2 37 35 24.5 24.5 12.5
Other ＜1 ＜1 ＜0.5 ＜0.5 ＜0.5
Cr2O3 - - - -
Thermal conductivity, W/m.K
600°C (1120°F) 0.11 0.14 0.12 0.12 0.11
800°C (1472°F) 0.15 0.17 0.15 0.16 0.14
1000°C (1832°F) 0.27 0.24 0.18 0.19 0.17

Custom size are available.Contact Us
