PUREWOOL® RCF Blanket for Fabrication

Temperature Grade

1260°C (2300°F), 1430°C (2600°F)

Chemistry

Alumina, Silica

CCEWOOL® PUREWOOL® RCF Blanket for Fabrication. High-purity fiber, low shrinkage, tensile strength up to 90 kPa, and custom sizes for engineered insulation.

Get a Quote

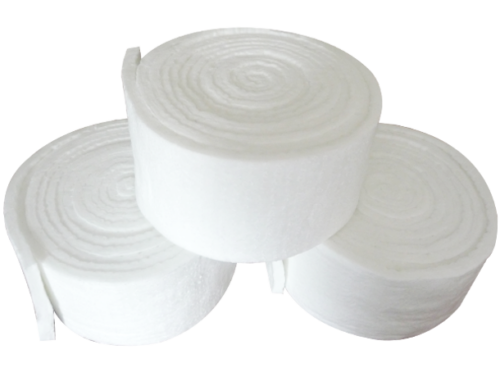

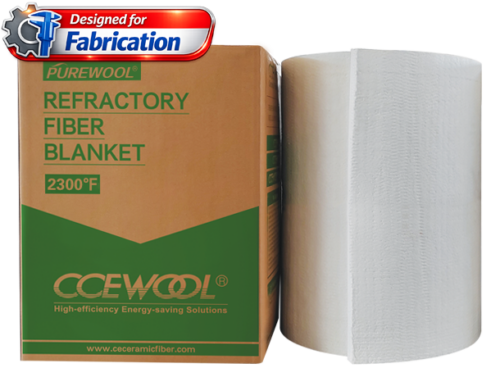

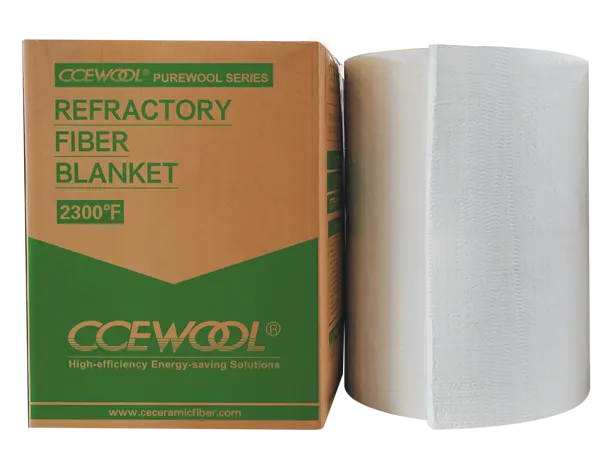

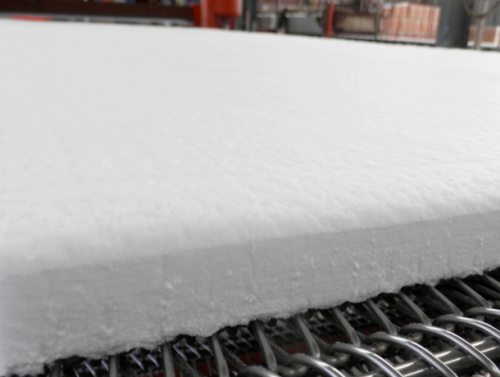

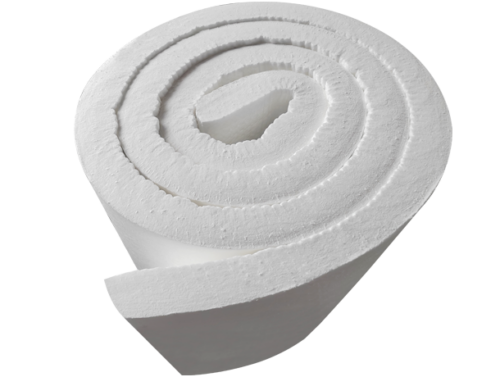

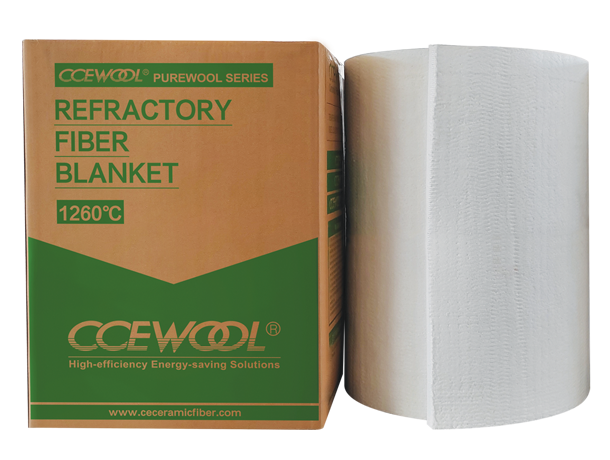

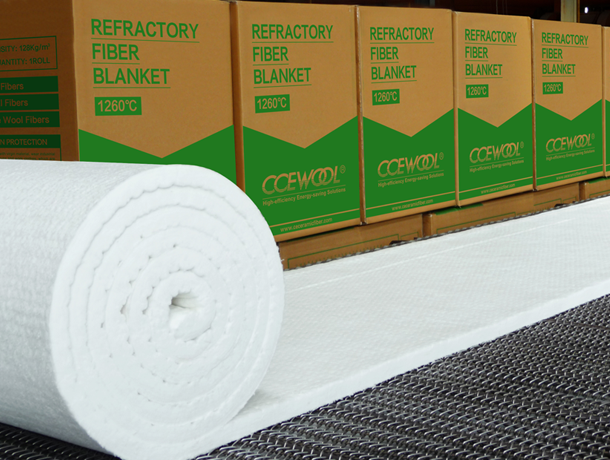

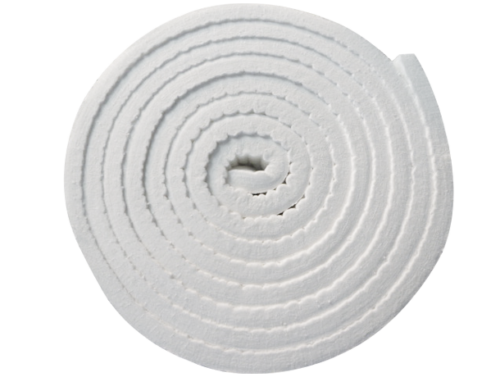

CCEWOOL® PUREWOOL® RCF Blanket for Fabrication

CCEWOOL® PUREWOOL® RCF Blanket for Fabrication is a high-purity ceramic fiber blanket developed for demanding high-temperature engineering applications. The product is manufactured using high-purity synthetic raw materials including alumina, silica, and zirconia. Through optimized formulation and fiberization technology, the blanket achieves higher fiber purity, lower impurity levels, and a cleaner white fiber appearance. As a result, the material offers lower shrinkage, improved thermal insulation performance, and greater structural stability under high-temperature operating conditions.

Compared with conventional industrial-grade ceramic fiber blankets, PUREWOOL® RCF Blanket for Fabrication provides improved fiber length, structural uniformity, and mechanical strength. The blanket is produced using an extra-long spun fiber structure combined with double-sided internal needling, creating a stable three-dimensional interlocking fiber network throughout the material. This structure significantly enhances the tensile strength and overall structural integrity of the blanket, with tensile strength reaching up to 90 kPa.

CCEWOOL® PUREWOOL® RCF Blanket also offers excellent Fabrication compatibility. The material can be easily cut, layered, or structurally processed to meet specific engineering requirements for high-temperature insulation systems in industrial equipment. In addition, CCEWOOL® provides the blanket in a wide range of thicknesses, widths, and densities, allowing customers to select the most suitable configuration to improve energy efficiency and insulation performance in different industrial applications.

Benefits

  • Upgraded Raw Materials

    Made from high-purity synthetic raw materials including alumina, zirconia, and silica, with extremely low impurity content.

  • Lightweight and Strong

    Lightweight and high-strength, this product is easy to install, with low thermal conductivity and strong heat storage capacity. It effectively saves energy and offers excellent thermal shock resistance, making it suitable for harsh environments.

  • Fabrication-Ready & Fully Customizable

    Easy to cut, layer, and process, with customizable thickness, width, and density to meet specific engineering and industrial application requirements.

  • Innovative Technology for Enhanced Tensile Strength

    With ultra-long spun fibers cross-locked using double-sided needling technology, the tensile strength reaches 90 KPa, providing effective impact resistance in harsh environments and significantly extending the product's lifespan.

Features of PUREWOOL® RCF Blanket

  • Superior Handling Strength

    The product is durable and easy to handle during installation and use.

  • Exceptional Hot Strength

    Maintains its structural integrity even at high temperatures.

  • Low Thermal Conductivity

    Minimizes heat transfer, ensuring efficient thermal insulation.

  • Low Heat Storage

    Retains minimal heat, allowing faster heating and cooling cycles.

  • Lightweight Design

    Easy to transport, install, and reduces overall structural load.

  • High Resiliency

    The material can recover its shape after compression, enhancing its durability.

  • Excellent Thermal Shock Resistance

    Withstands rapid temperature changes without cracking or damage.

  • High Heat Reflectance

    Reflects radiant heat effectively, improving energy efficiency.

  • Outstanding Corrosion Resistance

    Resists chemical and environmental damage, ensuring long-lasting performance.

  • Excellent Thermal Stability

    Maintains performance and structure under prolonged high temperatures.

  • Extremely Low Shrinkage at High Temperatures

    Maintains dimensional stability under prolonged high-temperature exposure, helping preserve insulation performance and structural integrity.

  • Suitable for Fabrication Processing

    Easy to cut, layer, and machine, enabling efficient conversion into custom insulation components for various high-temperature applications.

Application of PUREWOOL® RCF Blanket

Highly efficient energy-saving solutions

Industrial furnace wall lining;
Back lining material;
Furnace masonry expansion joints, door, roof heat insulation seal;
High temperature pipe insulation material;
Module / folded module processing material;
Fireproof coating;
Steel industry;
Heat treating and annealing furnaces;
Furnace door linings and seals;
Soaking pit covers and seals;
Furnace hot face repairs;
Reheat furnaces;
Ladle covers;
Power generation;
Boiler Insulation;
Boiler Doors;
Reusable Turbine Covers;
Pipe Covering;
Insulation of Commercial Dryers and Covers;
Veneer Over Existing Refractory;
Stress Relieving Furnaces;
Glass Furnace Crown Insulation;
Fire Protection.

Specifications & Sizes

CCEWOOL® PUREWOOL® RCF Blanket for Fabrication
Classification temperature 1260(2300℉) 1430(2600℉)
Operation Temp(℃)(℉) 1100℃(2012℉) 1350℃(2462℉)
Density (kg/m3) 96/ 128/ 160（6,8,10lb/ft3）
Shot Content(%) ≤12
Color White
Chemical Composition of refractory ceramic blanket  (%)
Al2O3 ≥44 ≥35
SiO2 ≥55 ≥49
ZrO2 - ≥15
Permanent Change on Heating (%), EN1094-1
 After 24 hours
®950℃ (1742℉) - -
®1000℃ (1832℉) 1.5 -
®1100℃ (2012℉) 2 -
®1200℃ (2192℉) 2.7 1
®1300℃ (2372℉) 5.5 2
®1400℃ (2552℉) - 3
Tensile Strength(Kg/m3), EN1094-1 KPa
 64kg/m3(4lb/ft3) - -
96kg/m3(6lb/ft3) 60 60
128kg/m3(8lb/ft3) 85 85
160kg/m3(10lb/ft3) 125 125
Heat Conductive Co-efficient W/(m·k)(128kg/m3)
200℃ (392℉) 0.07 0.06
400℃ (752℉) 0.12 0.1
600℃ (1112 ℉) 0.2 0.15
800℃ (1472℉) 0.3 0.2
1000℃ (1832℉) 0.35 0.3
Thickness  Density (kg/m3) Length Width
mm 64 96 128 160 mm mm
6 - - ○ ○ 7200 610, 1220
13 - √ √ ○ 14640
19 - √ √ ○ 9760
25 ○ √ √ √ 7320
38 ○ √ √ √ 4880
50 ○ √ √ - 3660
Thickness  Density (lb/ft3) Length Width
in 4# 6# 8# 10# in in
1/4” - - ○ ○ 300” 24”,48”
1/2” - √ √ ○ 600”
3/4” - √ √ ○ 400”
1” ○ √ √ √ 300”
3/2” ○ √ √ √ 200”
2” ○ √ √ - 150”

Custom size are available.Contact Us
