1900 Back-Up Board for Fabrication

Temperature Grade

1900°F (1050°C), 2100°F (1150°C)

Chemistry

Alumina, Silica

CCEWOOL® 1900 Back-Up Board for Fabrication. Low thermal conductivity, low heat storage, precise machining, and custom shapes for furnace backup insulation.

Get a Quote

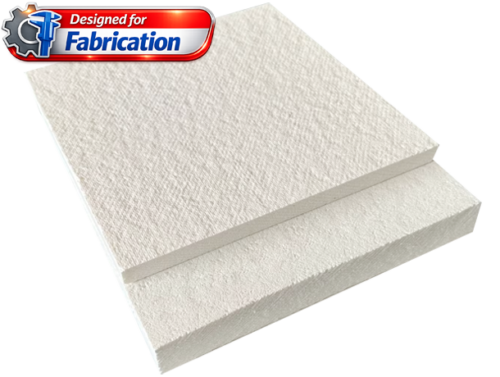

CCEWOOL® 1900 Back-Up Board for Fabrication

CCEWOOL® 1900 Back-Up Board for Fabrication is a high-performance ceramic fiber board specifically designed for backup insulation layers in industrial furnace lining systems. The product is manufactured using high-purity aluminosilicate ceramic fiber wool combined with selected refractory raw materials. Produced on a fully automated continuous production line, a small amount of binder is added during processing, and the material is formed into rigid boards through pressing, curing, and precision cutting processes.

Compared with conventional industrial-grade fiber boards, CCEWOOL® 1900 Back-Up Board for Fabrication features a more uniform fiber distribution and enhanced structural stability, enabling more reliable thermal insulation performance in furnace lining systems. As a backup insulation material within multilayer furnace linings, the board offers low thermal conductivity and low heat storage capacity, effectively reducing furnace heat loss, improving thermal efficiency, lowering overall lining weight, and enhancing structural stability.
The board has a uniform structure, smooth surface, and precise dimensional tolerances, providing good mechanical strength and excellent thermal shock resistance. It is suitable for a wide range of backup insulation applications in industrial furnace systems.

In addition, the material provides excellent Fabrication compatibility. The board can be easily cut, drilled, and mechanically machined, and CCEWOOL® also offers Fabrication customization services, including custom dimensions, thicknesses, and complex-shaped components. This allows the product to be adapted to various furnace designs and engineering requirements in high-temperature industrial equipment.

Benefits

  • Ideal for Kiln Backup Insulation Applications

    Designed for backup insulation and wall lining in industrial furnace and kiln systems, the board delivers reliable thermal insulation performance that helps reduce heat loss, improve thermal efficiency, and support stable furnace operation.

  • Automated Production for Better Consistency

    Manufactured on a fully automated continuous production line, the board offers more uniform fiber distribution, improved structural stability, and better dimensional consistency than conventional production methods.

  • Uniform Drying for Reliable Strength

    An automated drying process ensures fast and even moisture removal, helping the board maintain stable compressive and flexural strength for dependable performance in furnace backup insulation systems.

  • Fabrication-Ready with High Dimensional Accuracy

    The board is well suited for cutting, drilling, and machining. With CNC-based processing and customization capability, it can be supplied in precise dimensions and special shapes for demanding furnace design requirements.

Features of 1900 Back-Up Board for Fabrication

  • Engineering-Grade Furnace Back-Up Insulation Board

    Designed for reliable performance in industrial furnace backup insulation systems.

  • Excellent Thermal Stability and Thermal Shock Resistance

    Maintains structural integrity under high temperatures and frequent thermal cycling.

  • Low Thermal Conductivity and Low Heat Storage

    Reduces heat loss and improves furnace energy efficiency.

  • Lightweight Structure, Reducing Furnace Load

    Lowers overall lining weight and supports more efficient furnace operation.

  • Good Mechanical Strength and Compressive Resistance

    Provides sufficient strength to withstand installation and operating loads.

  • Excellent Moisture Resistance and Corrosion Resistance

    Performs reliably in humid and chemically exposed environments.

  • Uniform Structure with Precise Dimensional Tolerance

    Ensures consistent quality and easy installation with minimal adjustment.

  • Easy Fabrication, Machining, and Installation

    Can be cut, drilled, and processed into custom shapes for various applications.

Application of 1900 Back-Up Board for Fabrication

Highly efficient energy-saving solutions

Primarily used as a back-up insulation layer in industrial furnace lining systems, including:
Industrial Kilns and Furnaces
Cement kiln back-up insulation
Ceramic kiln back-up insulation
Glass furnace wall and back-up insulation
Heat Treatment Equipment
Heat treatment furnace back-up insulation
Electric furnace insulation layers
Metallurgical and Petrochemical Equipment
Metallurgical furnace back-up insulation
Petrochemical process heater insulation layers
Other High-Temperature Equipment
Back-up insulation for high-temperature reaction equipment
Thermal insulation structures for high-temperature pipelines and equipment

Specifications & Sizes

CCEWOOL® 1900 Back-Up Board for Fabrication
Classification Temperature

1900°F (1050°C)

2100°F (1150°C)
Continuous Temperature Use Limit (°C)

1750°F (950°C)

1850°F (1000°C)
Color

White

White
Modulus of Rupture (MPa)

≥0.3

≥0.3
Compressive Strength (MPa, 10% relative deformation)

≥0.1

≥0.2
Loss on Ignition (%)

≤7

≤7
Permanent Linear Shrinkage (%)

950°Cx24h≤2.0

1000°Cx24h≤2.0
Thermal Conductivity (W/m·K)
800°C

≤0.116

-
1000°C

--

≤0.135

Custom size are available.Contact Us
