1500MX Fiber Module

Temperature Grade

1500°C (2732°F)

Chemistry

Alumina, Silica

CCEWOOL® 1500MX Fiber Module bridges the performance gap between zirconia and alumina fibers, delivering reliable high-temperature insulation at a more competitive cost.

Get a Quote

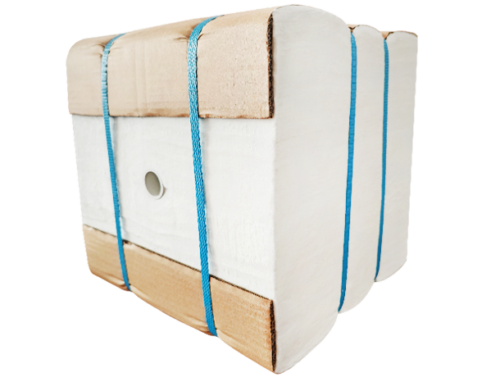

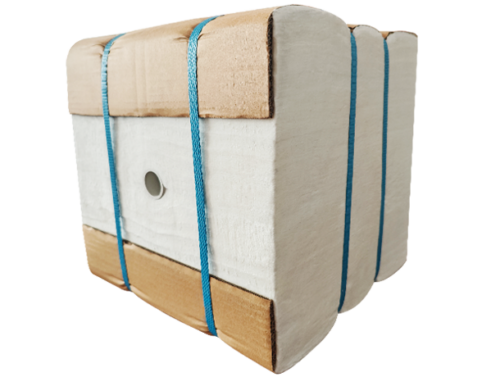

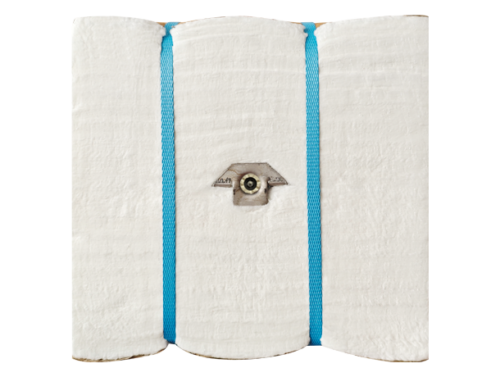

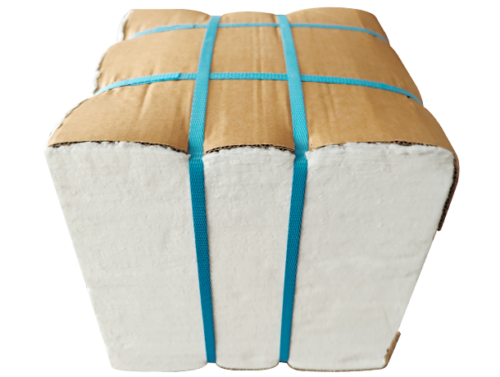

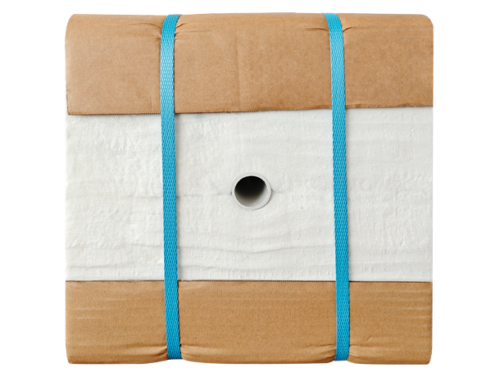

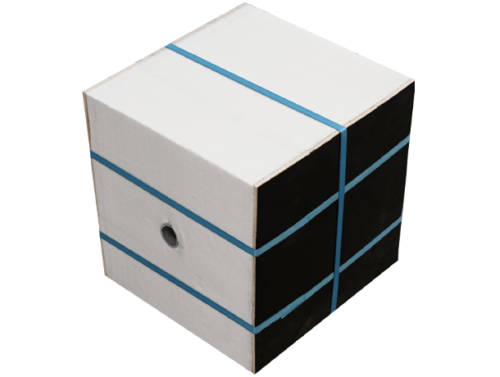

CCEWOOL® 1500MX Fiber Module

CCEWOOL® 1500MX Fiber Module is a high-performance composite refractory fiber product manufactured using a specialized microcrystalline process. Through targeted optimization of fiber composition and crystal phase structure, the module delivers lower long-term shrinkage, more stable thermal performance, and stronger structural integrity under sustained high-temperature operation.

Its temperature resistance falls between zirconia-containing ceramic fiber and alumina fiber, offering significantly better performance than conventional chromium-containing fibers, while remaining substantially more cost-effective than alumina fiber modules. This makes it a high-temperature insulation solution that balances performance and economy.

CCEWOOL® 1500MX Fiber Module is designed for industrial furnaces operating continuously at 1250–1350°C, with particularly strong performance in high-temperature forging furnaces, where it helps extend lining service life and reduce overall energy consumption.

Benefits

  • Optimized Performance Range

    Temperature resistance falls between zirconia-containing ceramic fiber and polycrystalline fiber. It outperforms traditional chromium-containing fibers while remaining more cost-effective than polycrystalline fiber, achieving an ideal balance between performance and cost.

  • Lower High-Temperature Shrinkage

    Linear shrinkage is only 0.4% at 1450°C, helping minimize lining deformation and improve long-term operational stability.

  • Enhanced Thermal Stability

    An optimized crystal phase structure provides superior thermal shock resistance, maintaining structural integrity under frequent heating and cooling cycles and extending lining service life.

  • Higher Cost Efficiency

    Meets high-temperature application requirements with better overall cost control, offering a more competitive solution for high-temperature furnace linings.

Features of 1500MX Fiber Module

  • 1500°C (2732°F) Temperature Rating

    Designed for medium-to-high temperature zones in forging furnaces and thermal processing equipment.

  • Low High-Temperature Shrinkage

    Microcrystalline structure reduces long-term shrinkage, helping maintain lining stability and tight joints.

  • Higher Heat Resistance

    Performs better than chromium-containing fibers and approaches alumina fiber performance under thermal cycling.

  • Improved Thermal Stability

    Enhanced thermal shock resistance supports longer furnace lining service life.

  • Cost-Effective Solution

    Offers near-alumina fiber performance at a more competitive cost for steel and forging applications.

Application of 1500MX Fiber Module

Highly efficient energy-saving solutions

CCEWOOL® 1500MX Fiber Module is designed for high-temperature industrial equipment operating continuously at 1250–1350°C. Typical applications include:

High-Temperature Forging Furnaces
Long-cycle heat treatment furnaces
Rapid heat-up forging furnaces
Furnaces requiring stable thermal fields and strong thermal shock resistance

Steel and Metallurgical Furnace Linings
Billet reheating furnaces
Billet holding furnaces
Quenching and heat treatment furnaces

High-Temperature Equipment in Petrochemical and Mechanical Industries
Prefabricated industrial furnaces
Combustion chambers and high-temperature flues
Hot-face insulation layers for process heating equipment

Cost-Effective Alternative to Chromium-Containing Fibers
Ideal for users seeking reduced cost while maintaining high-temperature stability and low shrinkage.

Specifications & Sizes

CCEWOOL® 1500MX Fiber Module

Classification Temperature (℃) 1500(2732℉)
Continuous Temperature Use Limit (℃) ≤1350(2462℉)
Density (kg/m3) 192 (12lb/ft3)
Shot Content (Φ≥0.212mm) (%) ≤10
Permanent Linear Shrinkage (%)
1450℃x24h ≤1 (Classical numerical: 0.4%)
1500℃x24h ≤2 (Classical numerical: 1.0%)
Thermal Conductivity (W/m·K)
200℃ 0.056
300℃ 0.074
400℃ 0.096
500℃ 0.122
600℃ 0.130
800℃ 0.240
1000℃ 0.330

Custom size are available.Contact Us
